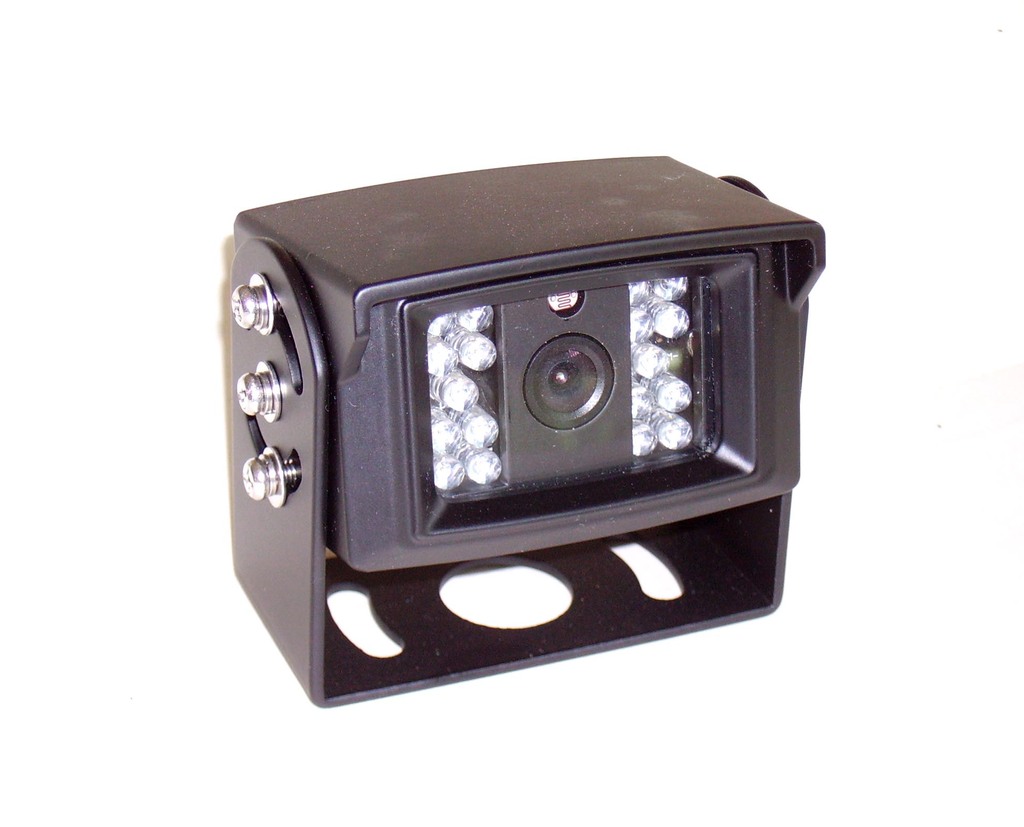

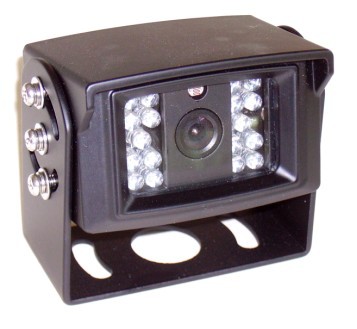

1/4 CCD攝像頭,適合卡車,公交車用

  • 總供應(yīng)量500
基本信息：
  • 2（W）W調(diào)整角度
    45度°
    1級掃描頻率
    50Hz
  • 卡車,公交車型號
    D01
    24（V）V外殼材質(zhì)
    鋁
  • PAL視頻信號
    CVBS
    150（g）g品牌
    LOSY
詳細信息：

1/4 CCD攝像頭,適合卡車,公交車用












Image Sensor

1/4" Color CCD

TV System

NTSC/PAL

Number of Pixels

NTSC:510(H)×492(V)

PAL:500(H)×582(V)

Horizontal Resolution

420TV Lines

Sync System

liternal Synchronization

Infra-red Distance

10m

Usable Lumination

0Lux(LED ON)

IR switch control

CDS Automatic control

S/N Ratio

≥48dB(AGC off)

Video Output

1Vp-p 75 Ohm

Electronic Shutter Time

Auto NTSC:1/60-1/100,000 Second

Auto PAL:1/50-1/100,000 Second

Operation Temperature

-20℃～ 65℃ RH95%Max

Storage Temperature

-25℃～ 75℃ RH95%Max

lens

f:2.1mm Board Lens

White Balance

Automatic

Power Supply

DC 12V 200mA
